Secure Boot and driver signing

I’ve already written on my other blog about what Secure Boot is and why I don’t trust it much. The short version is that it’s a chain of trust with too many links. Still, I enable it anyway. Imperfect security is better than none, and it’s a low-effort checkbox.

You might need to go into your UEFI/BIOS settings and turn it on there. Some motherboards ship with it off by default. Check mokutil --sb-state to see if it is enabled.

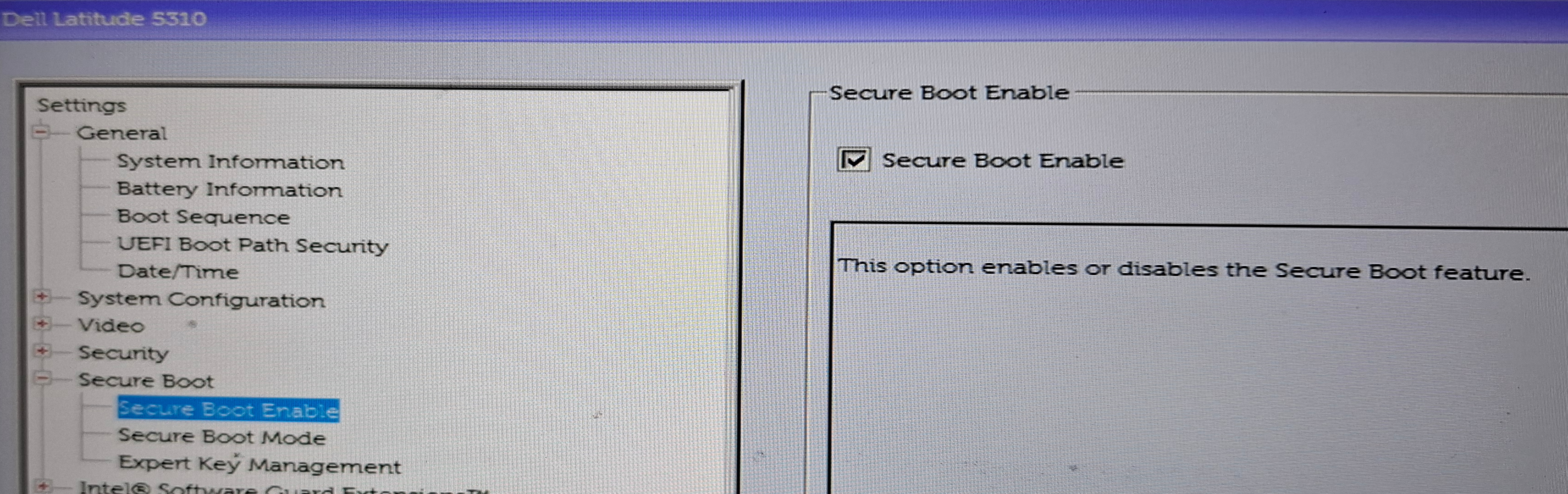

Secure Boot setting in UEFI

Kernel module signing

If Secure Boot is on, the kernel will refuse to load any module that isn’t signed by a key it trusts. Distro kernel and modules are already signed by the distro. But if you have DKMS-built drivers (e.g. NVIDIA or VirtualBox), the system will boot, but the modules won’t be loaded.

You need to sign the modules with your own key. The process is a bit awkward:

  • first, you run a few commands to generate a signing key and a certificate
  • then you reconfigure MOK, at this step you need to provide a one-time password
  • at the next boot, MokManager will run before GRUB - you’ll have a few seconds to press any key, otherwise it will proceed with a normal boot
  • in MokManager, you need to enter the one-time password
  • from now on, the modules will be signed and you won’t need the password anymore

Since I do it with all my Linux computers, I use a playbook for that. Tested with Debian Forky, should work on any recent Debian or Ubuntu.

---
- name: Install MOK signing prerequisites
  ansible.builtin.apt:
    name:
      - dkms
      - mokutil
      - openssl
      - python3-pexpect
    state: latest

- name: Ensure the DKMS tree directory exists
  ansible.builtin.file:
    path: /var/lib/dkms
    state: directory
    mode: '0755'

- name: Generate DKMS module signing key and certificate
  ansible.builtin.command:
    cmd: >-
      openssl req -new -x509 -nodes -days 36500 -subj "/CN=DKMS module signing key"
      -newkey rsa:2048 -keyout {{ mok_signing_key }}
      -addext "extendedKeyUsage=codeSigning"
      -outform DER -out {{ mok_signing_cert }}
  args:
    creates: "{{ mok_signing_key }}"

- name: Restrict permissions on the MOK private key
  ansible.builtin.file:
    path: "{{ mok_signing_key }}"
    mode: '0600'

- name: Check whether the MOK certificate is already enrolled
  ansible.builtin.command: "mokutil --test-key {{ mok_signing_cert }}"
  register: mok_enrollment_check
  changed_when: false

- name: Stage MOK certificate for enrollment
  ansible.builtin.expect:
    command: "mokutil --import {{ mok_signing_cert }}"
    responses:
      "[Ii]nput password:": "{{ mok_signing_passphrase }}"
      "[Ii]nput password again:": "{{ mok_signing_passphrase }}"
  when: "'is not enrolled' in mok_enrollment_check.stdout"
  no_log: true

Walking through what it does:

  1. Installs the required utils.
  2. Makes sure the path /var/lib/dkms where DKMS keeps keys and modules exists and has correct permissions.
  3. Generates a self-signed X.509 certificate, marked for code signing, with the matching private key. The creates argument makes this idempotent - if the key already exists, it won’t be regenerated.
  4. Checks with mokutil --test-key whether the certificate is already enrolled.
  5. If it isn’t, stages it for enrolment with mokutil --import. This is the one interactive-feeling step: mokutil --import asks you to set a password, which the playbook answers via ansible.builtin.expect. That way I can keep it in Ansible Vault.

After the playbook runs, you have to reboot and go through that MokManager prompt manually - “Enroll MOK” -> select the certificate -> enter the password -> confirm. There’s no way around that step, it’s a deliberate physical-presence check so malware can’t silently enrol its own keys.

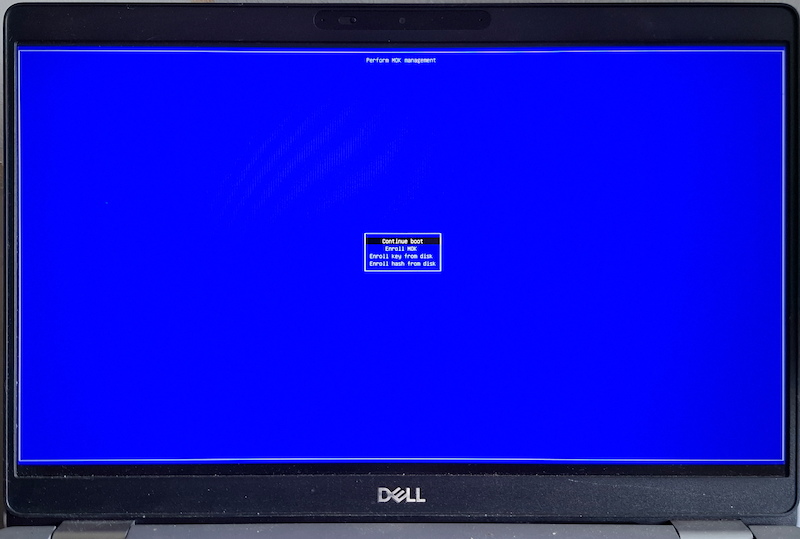

MokManager

I don’t have 3rd party modules or I’m not sure

You can go through these steps anyway. They won’t break anything and you’ll be ready if you add DKMS drivers in future.
